Shape and dimensions

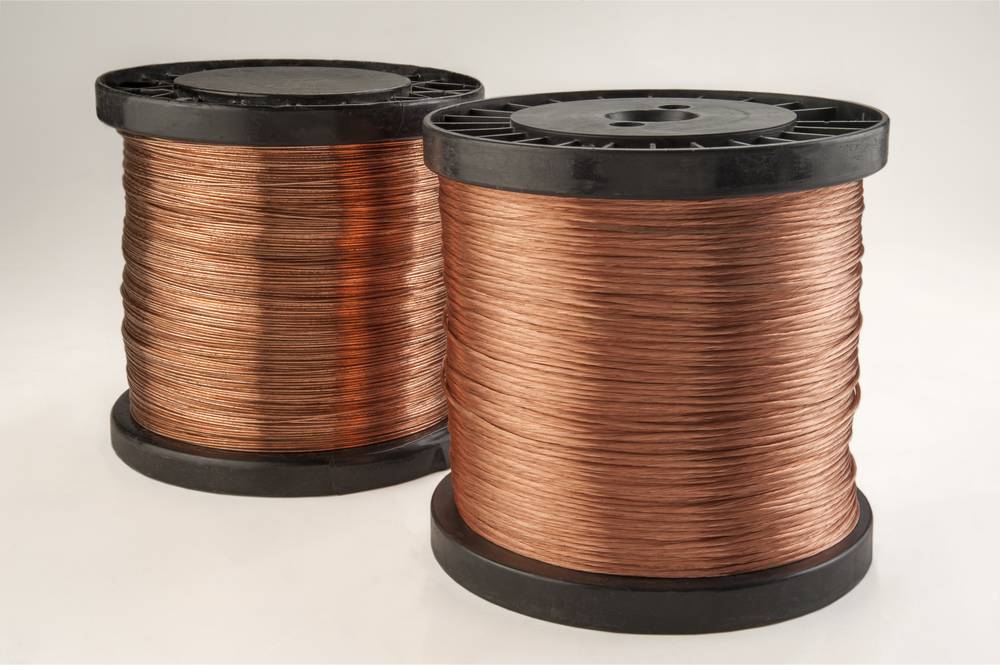

Continually annealed single core wire
| Product | Diameter (mm) | Spool weight (kg) |
| Soudronic wire | 1.38 and 1.5 | 400 |
Chemical composition
Alloy | Denomination | Copper (%) | Oxygen(max ppm) | Standard conformance |
|||
American | Chinese | Japanese | Europe |
||||
ASTM(B49) | GB | JIS | EN |
||||
| CU-OFE | Oxygen-free | 99.99 | 5 | C10100 | TU2 | C1011 | CW009A |
| CU-OF | Oxygen-free | 99.95 | 5 | C10200 | TU1 | C1020 | CW008A |
Technical properties
| Tensile Strength | Elongation (%) | Highest resistance in 20 C (Ωg/m) |
| 245-285 | 22-28 | 0.15328 |
Packing
- Wooden or plastic coated metal spool
- Weight 400 kg
Usage
Wrapping industry
